高可用性和網絡彈性

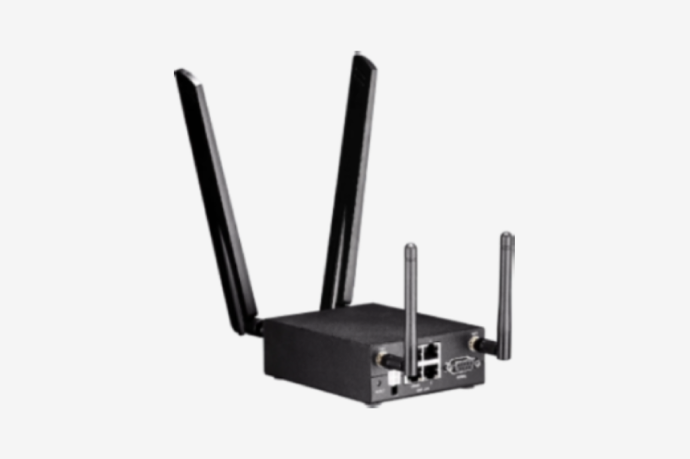

M120N是功能強大的工業級路由器，提供強大的網絡處理能力和Multi-WAN連接性，專為實現網絡可靠性和不中斷連續通訊而設計。支持彈性的WAN連接，可以自動地轉換備援WAN介面，當主要的WAN介面失效，次要的WAN介面會自動備援連線，降低服務中斷的干擾。M120N也支援雙SIM卡應用，可實現無線通訊的相互備援。M120N具有四個Gigabit乙太網路端口，一個支援RS-232或RS-485的串行端口和802.11n AP，提供多樣本地介面滿足絕大多數的Smart Bus和M2M的應用需求。

專為工業環境與車載而設計
M120N能在攝氏負40度至60度(華氏負40度至140度)的環境溫度下穩定工作，允許輸入的直流電壓範圍自10至56伏特，可用於各種環境和應用。此外，M120N 也適於裝置在各種大小的車輛，並配置了點火感應(Ignition Sensing)，可自動感應車輛引擎發動狀況，當車輛熄火後會自動關機，以防止汽車電池能源耗盡。為實現簡單、可靠和高效的目標，簡潔、輕巧的設計結合高度彈性的安裝選項，以確保M120N可以輕鬆地安裝在任何地方。

彈性的網路連線

• Dual SIMs
• Dual-WAN Interfaces (LTE, GbE WAN)

內嵌式 4G/LTE

• Embedded high performance 4G/LTE module
• Primary WAN LTE: FDD and TDD (Bands depend on module configuration)

網路通訊協定與功能

• Dual WAN Failover/ Failback
• Dual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack*2
• Dual APN*3
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2, OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/client/relay


防火牆

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN Pass-through

虛擬專用網路 (VPN)

• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN

無線網路

• Compliant with IEEE 802.11n standard
• Up to 300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup) for easy setup
• 64/128 bits WEP supported for encryption
• Wireless security with WPA, WPA2, WPA/WAP2
• AP and WDS Operational Modes
• Multiple SSID (4 SSIDs), BSSID
• Wireless MAC Filtering
• Wireless Client Isolation
• Wi-Fi Hotspot with Captive Portal
• Support RADIUS authentication
• Wireless Client rate-limiting

串行序列埠(RS-232/RS-485)

• DB-9 female
• RS-232/ RS-485
• Modbus/TCP, Telnet Server, SSH Server, UDP Server/ Client, TCP Server/ Client

全球導航衛星系統(GNSS)*4

• Embedded multi-GNSS engine for GPS or GLONASS system

系統管理

• Password protection for system management
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and download via web-based GUI
• CWMP(TR-069)*2, SNMP
• 4G/LTE or 3G Usage Allowance
• Remote System Log monitoring
• Scheduling Auto-Reboot
• Physical layer/protocol diagnostic test tool

硬體規格/實體介面

• WAN: 4G/LTE (and/or GbE WAN)
• Ethernet LAN: four(4) port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch
• Serial Port(DB-9 female): one(1) port
• SIM Card: two(2) slots
• Reset Button
• Power Connector: 4-pin connector with ignition sensing
• LED Indicators
• Antenna: 4G/LTE: 2 detachable antennas
• GPS: 1 detachable active antenna (option)
• Wireless: 2 detachable antennas

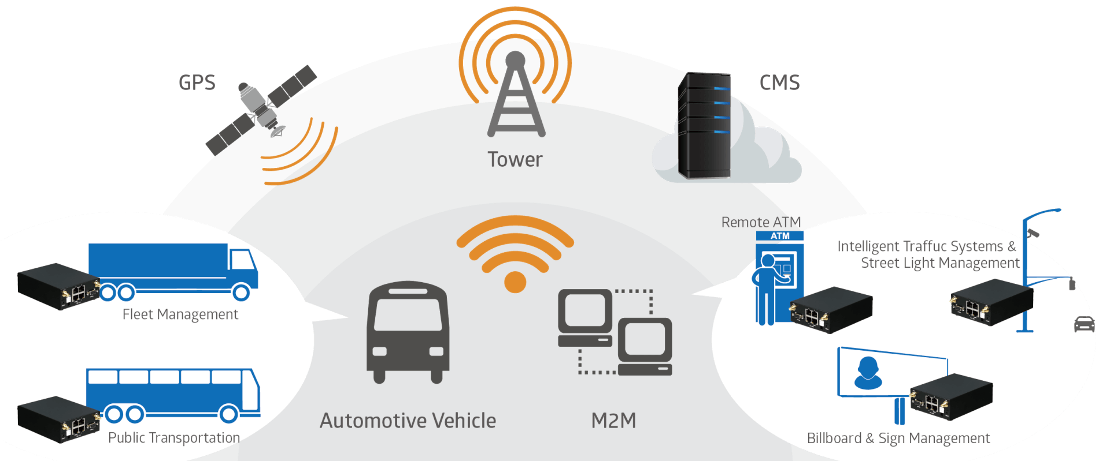

應用圖

規格表

WAN Interface
LTE	●  ​
Ethernet WAN	● GbE

Hardware Interface
SIM slot	● (x2)
Gigabit Ethernet	● (RJ45 x4)(Configurable EWAN x1)
802.11n (2.4 GHz)	● (300Mbps)
802.11ac (5 GHz)	​
GPS	● (optional)
mini USB
Serial port (RS-232/RS-485)	● (DB9 x1)

Features
VPN	​
IPv4 / IPv6	​
VLAN_MUX	​
Failover / Fallback	​
Load Balance	​
Dual APNs	​
Dual firmware images	​
Metal casing	​

Hardware Specifications
Physical Specifications	4.92"(W) x 1.49"(H) x 3.85"(D)(125 mm x 38 mm x 98 mm)
Weight	0.62kg (1.36lbs)
Operating Environment	DC input steady state voltage range: 10 ~ 56 VDC
Operating Environment	-40°C ~ 60 °C
Humidity	20% - 95% non-condensing
