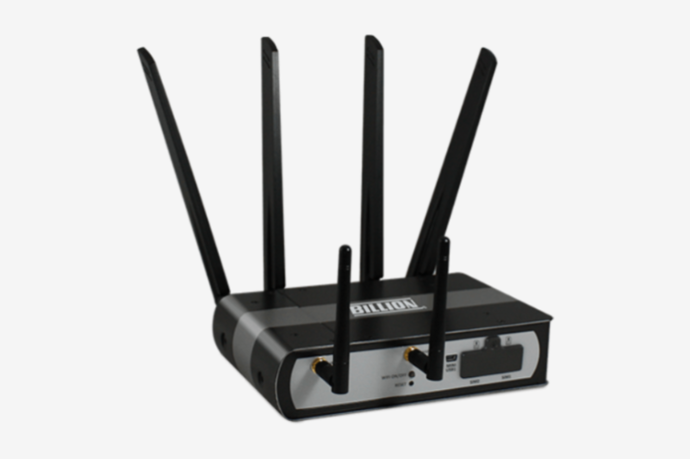

Billion M500
LTE 雙卡雙待 無線熱點 工控/車載E-Mark (R10、R118) 路由器
Billion M500 LTE 雙卡雙待 無線熱點 工控/車載 E-Mark (R10、R118) 路由器是一款高性能的一體化固定無線通訊設備，採用先進的軟件，可實現高可用性、可靠、安全的無線連接，適用於關鍵任務應用。其緊湊堅固耐用的設計集成了雙SIM雙射頻、4端口千兆交換機、Wi-Fi接入點、嵌入式GPS與GPS或GLONASS引擎的並發多GNSS引擎以及車載應用的點火電源控制。 M500是專門為支持廣泛的應用和垂直機對機(M2M)細分市場而設計。
特點及優勢
專為挑戰性/堅固的部署而設計
Billion M500的金屬機殼，在穩固性的要求下提供最大彈性的拆換組裝可能性，並且通過MIL-STD-810G 514.6, 516.6 美國軍方標準測試。Billion M500的主動監控設備溫度機制能擴大系統可工作溫度(-40°~60°C)，M500也提供適應大範圍工作電壓(DC 10V~56V)的電路設計，足以滿足各種嚴苛的操作環境需求。
彈性的網路連線
Billion M500的雙LTE模組的架構設計可依照不同方案需求提供「頻寬擴展性-負載平衡」或「可靠性連結-自動故障轉移與回復」，實時提供穩定可靠的連線品質。Billion M500同時內建GNSS功能，中控中心可據此追蹤遠端系統座標進而定位。
高性能、可靠性、易於管理
搭配Billion CMS更可於中控中心內即時監控M500系統本身運行狀況。Billion M500整體設計的優勢足以滿足彈性、靈活、可靠與穩定的嚴格要求，此外提供多種VPN連線通道保障通訊資料安全性，以及內建衛星導航系統（GNSS）可追蹤遠端系統定位，讓Billion M500足以勝任遠端監控系統的通訊任務，確保資料即時無誤的傳達至中央控制中心。
High-performance and reliability - easy to manage and access
- Offers LTE broadband connectivity (3G Fallback is optional)
- Multi-WAN interfaces: Dual SIMs/ Dual Modules and EWAN for network resilience and reliable connectivity
- Supports two SIM cards, and each SIM card is associated with one of the two LTE radios/modules
- Network expandability - load balance and reliable connectivity - auto-failover/failback
- Embedded GNSS option for real-time asset tracking and location data-based applications
- Local and Remote management via Web GUI, SNMP or CWMP(TR-069)
Compact and unobtrusive design
-
Small form factor with multiple mounting options, easily installed by a single person
-
Ignition power control option when mounted within vehicles
Secure VPN Connections
-
Embedded IPSec, PPTP, L2TP, GRE and OpenVPN secure VPN connection with powerful encryption
Designed for challenging / rugged deployments
- Hardened enclosure with Industrial-graded components
- Designed to withstand heat, humidity and protect from shock, vibration, etc
- E-Mark (E1) certified
Ideal Solution for
- Business Continuity, Logistics/Transportation and Fleet, Public Safety applications
規格
Availability and Resilience
- Dual SIMs/ Dual Modules
- Dual-WAN Interfaces (LTE, GbE WAN)
Embedded 4G/LTE *1
- Embedded high performance 4G/LTE module
-
Primary WAN LTE: FDD and TDD (Bands
depend on module configuration)
-
Secondary WAN LTE: Optional (Bands depend on module configuration)
Network Protocols and Features
- Dual WAN Failover/ Failback
- Dual WAN Load Balancing
- IPv4, IPv6, IPv4/IPv6 dual stack *2
- Dual APN*2
- Keep Alive
- IP Pass-Through
- NAT, Virtual Server and DMZ
- Static Routing, Dynamic Routing (RIP v1/v2,OSPF, BGP)
- SNTP, DNS relay and DDNS
- Universal Plug and Play (UPnP) compliant
- Supports DHCP server/client/relay
Firewall
- Built-in NAT Firewall
- Stateful Packet Inspection (SPI)
-
Prevents DoS attacks including Land Attack,Ping of Death, etc.
- Access Control
- IP Filtering, MAC Filtering, URL Filtering
- VPN Pass-through
Virtual Private Network (VPN)
-
IPSec
- PPTP
- L2TP
- GRE
- OpenVPN
Wireless LAN
- Compliant with IEEE 802.11n standard
- Up to 300Mbps wireless operation rate
- WPS (Wi-Fi Protected Setup) for easy setup
- 64/128 bits WEP supported for encryption
-
Wireless security with WPA-PSK, WPA2-PSK,Mixed WPA/WAP2-PSK
- AP and WDS Operational Modes
- Multiple SSID (4 SSIDs), BSSID
- Wireless MAC Filtering
- Wi-Fi Client Isolation
- Wi-Fi Hotspot with Captive Portal
- Support RADIUS authentication
- Wi-Fi client rate-limiting
Global Navigation Satellite System(GNSS) *3
-
Embedded multi-GNSS engine for GPS or
GLONASS system
USB Application Server
- Storage: FTP server and Samba server
Management
- Password protection for system management
-
Web-based GUI for remote and local
management
-
Firmware upgrade and configuration data
upload and download via web-based GUI
- CWMP(TR-069) *2 , SNMP
- 3G/ 4G LTE Usage Allowance
- Remote System Log monitoring
- Scheduling Auto-Reboot
- Physical layer/protocol diagnostic test tool
Physical layer/protocol diagnostic test tool
-
WAN: 4G/LTE
Optional :
Single Module/SIM
Dual Modules/SIMs
-
Ethernet LAN: four(4) port 10/100/1000Mbps
auto-crossover (MDI/ MDI-X) switch
- USB 2.0 Host: two(2) ports
- Mini USB Console: two(2) ports
- Reset Button
- Wireless On/Off and WPS Push Button
-
Power Connector: 4-pin connector with
ignition sensing
- LED Indicators
- Antenna:
-
4G/LTE:
four(4) detachable antennas(dual modules)
two(2) detachable antennas(single module)
-
GPS: one(1) detachable active antenna
(option)
- Wireless: two(2) detachable antennas
Power Specifications
- Input: DC 10V~56V
Physical Specifications
-
Dimensions: 7.25"(W) x 1.91"(H) x 5.31"(D)
(184.25 mm x 48.5 mm x 135 mm)
-
Weight: 1.07kg (2.36lbs)
Operating Requirements
- Operating: -40°C to 60°C (-40°F to 140°F)
- Humidity: 20 ~ 95% non-condensing

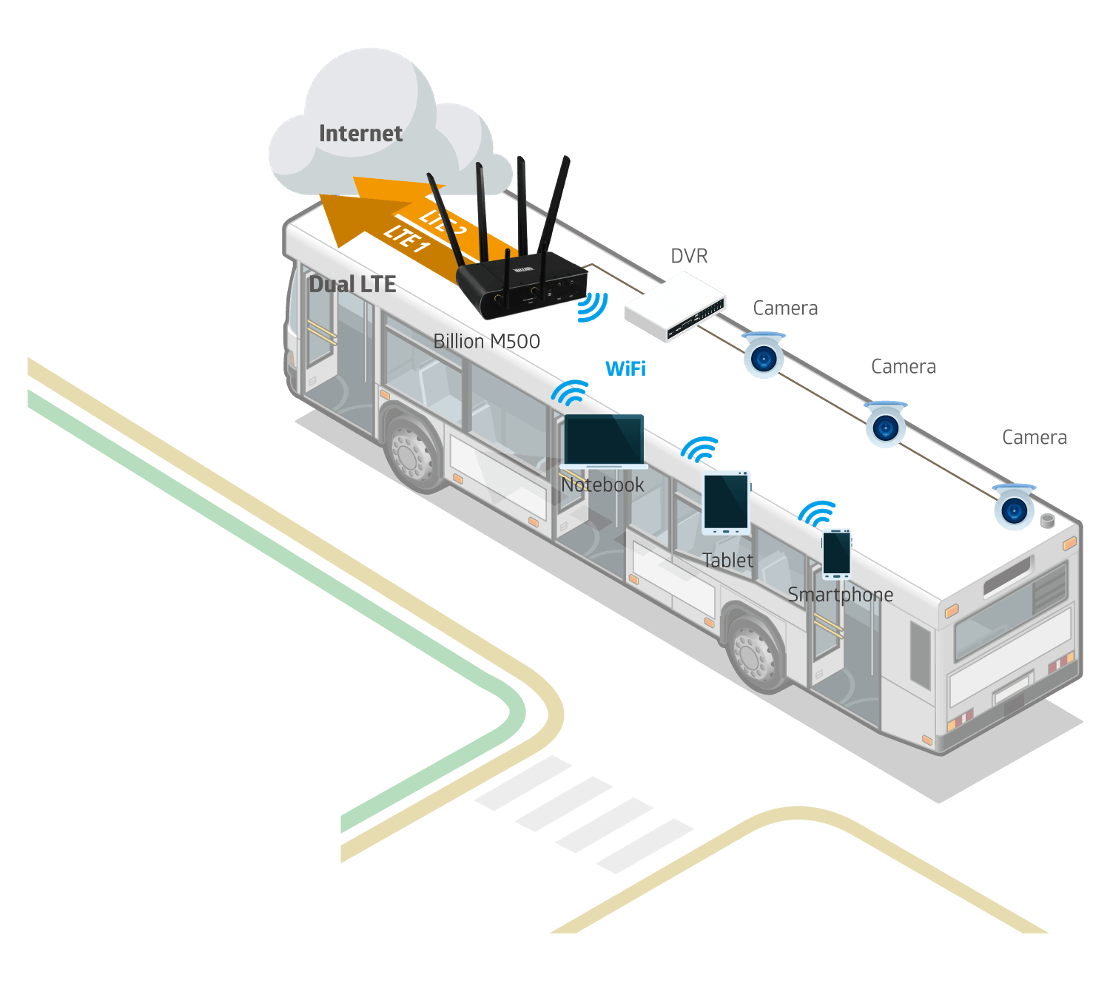

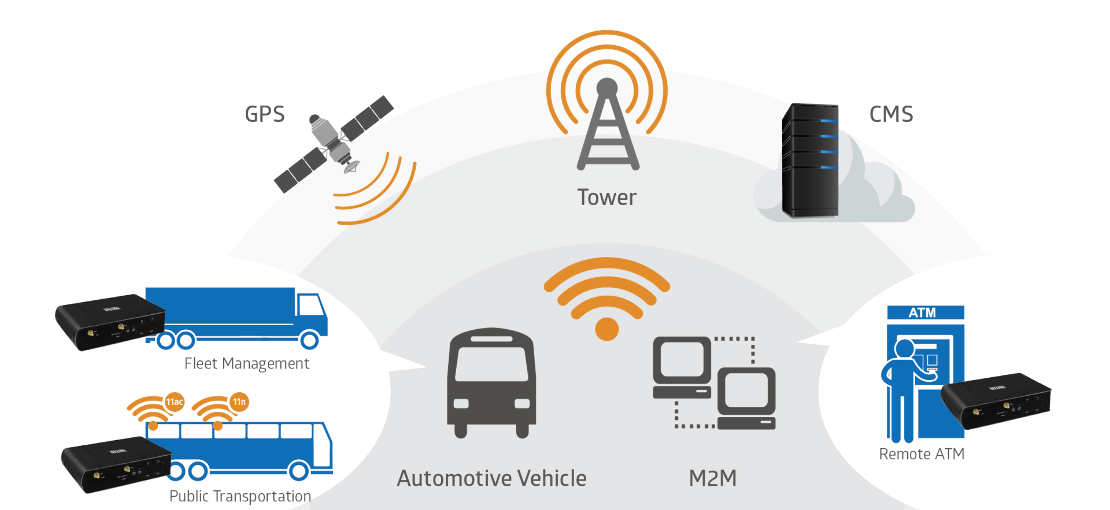

應用圖
規格表
| WAN Interface | |
|---|---|
|
LTE
|
● (x2) |
|
Ethernet WAN
|
● GbE |
|
Hardware Interface
|
|
|---|---|
|
SIM slot
|
● (x2) |
|
Gigabit Ethernet
|
● (RJ45 x4)(Configurable EWAN x1) |
|
USB Host
|
● (USB 2.0 x1) |
|
802.11n (2.4 GHz)
|
● (300Mbps) |
|
802.11ac (5 GHz)
|
|
| GPS | |
|
mini USB
|
● (x2) |
|
Features
|
|
|---|---|
|
VPN
|
|
|
IPv4 / IPv6
|
|
|
VLAN_MUX
|
|
|
Dual WAN (Failover/Failback)
|
|
|
Dual WAN (Load Balance)
|
|
|
Dual APNs
|
|
|
Dual firmware images
|
|
|
Metal casing
|
|
|
Hardware Specifications
|
|
|---|---|
|
Physical Specifications
|
● 7.83" x 5.21" x 1.84" (198.85 mm x 132.4 mm x 46.7mm) |
|
Power Requirements
|
● DC input steady state voltage range: 10 ~ 56 VDC |
|
Operating Environment
|
● -40°C ~ 60 °C |
|
Humidity
|
● 20% - 95% non-condensing |
