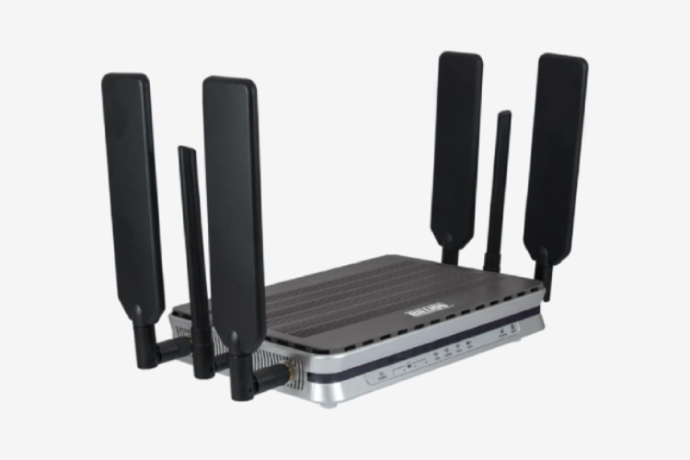

BiPAC 5500A
5G NR 無線雙頻 VPN 路由器
BiPAC 5500A 符合最新的 5G NR 移動通訊標準。BiPAC 5500A 內建 5G NR(sub-6G)模組，並向下相容 4G LTE標準，也提供廣域 Gigabit 乙太埠，內網介面具備 802.11n/ac 無線雙頻接入點和四個 Gigabit 乙太網路埠，為企業用戶、SOHO 族和家庭分享使用提供高速、安全的網際網路連結。
特點及優勢
高性能
-
新一代5G NR(sub-6G)移動通訊模組*1
-
Gigabit乙太網路埠
- 無線雙頻分享最高速率可達2.3Gbps
高實用性
-
支援多組5G NR(sub-6G)頻帶*1
- 雙端口設計- 5G NR移動通訊和廣域Gigabit乙太埠
- 無線雙頻- 2.4GHz and 5GHz
-
多組虛擬SSID與無線客戶端隔離功能
虛擬私人網路 (VPN)
-
提供IPSec, OpenVPN, GRE, PPTP, L2TP等多項VPN協定
流量監控調配 (QoS)
- 流量限制與保證頻寬
支援 IPv6
-
IPv4, IPv6, IPv4/ IPv6 dual stack*2
CWMP（TR-069）
-
支援CWMP(TR-069)*2
USB 埠存取應用
- 內建SAMBA伺服端, FTP伺服端
功能及規格
5G NR(sub-6G)移動通訊
- Dual SIMs/ Dual Modules
- Dual-WAN Interfaces (LTE, GbE WAN)
內建5G NR(sub-6G)模組
-
Frequency bands and data rate depend on equipping 5G NR (sub-6G) module *1
網路協議與功能
- Dual WAN Failover/ Failback
- Dual WAN Load Balancing
- IPv4, IPv6, IPv4/IPv6 dual stack *2
- Dual APN*2
- Keep Alive
- IP Pass-Through
- NAT, Virtual Server and DMZ
- Static Routing, Dynamic Routing (RIP v1/v2,OSPF, BGP)
- SNTP, DNS relay and DDNS
- Universal Plug and Play (UPnP) compliant
- Supports DHCP server/client/relay
防火牆
- Built-in NAT Firewall
- Stateful Packet Inspection (SPI)
-
Prevents DoS attacks including Land Attack,Ping of Death, etc.
- Access Control
- IP Filtering, MAC Filtering, URL Filtering
- VPN Pass-through
虛擬私人網路 (VPN)
-
IPSec
-
PPTP
-
L2TP
-
GRE
- OpenVPN
無線網路
- IEEE 802.11a/b/g/n/ac compliant
- Concurrent dual-band 802.11a/n/ac(5GHz) and 802.11b/g/n(2.4GHz)
- Up to 1733Mbps wireless operation rate at 5GHz
- Up to 600Mbps wireless operation rate at 2.4GHz
- 64/128 bits WEP supported for encryption
-
Wireless security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK
-
WPS (Wi-Fi Protected Setup) for easy setup
- Multiple wireless SSIDs
-
Wireless MAC Filtering
-
Wireless Client Isolation
- Supports WDS repeater function
USB埠存取應用伺服器
- Storage/NAS: FTP server, SAMBA server
設備管理系統
- Password protection for system management
- Quick installation wizard
- Web-based GUI for remote and local management
- Firmware upgrades and configuration data upload and download via Web-based GUI
- TR-069 (CWMP)*2, SNMP
- 5G NR Usage Allowance
- Syslog monitoring
- Physical layer/protocol diagnostic test tool
- Scheduling Auto-Reboot
實體介面
- Four (4) detachable high performance 5G NR antennas
- Two (2) detachable 2.4GHz and 5GHz dual-band antennas
- Two (2) internal 2.4GHz and 5GHz dual-band antennas
- Four (4) Gigabit Ethernet auto-crossover (MDI/MDI-X) switch
- One (1) USB 2.0 host type A
- One (1) 2FF mini-SIM slot
- Factory default reset button
- Wireless on/off and WPS push button
- Power jack for DC input

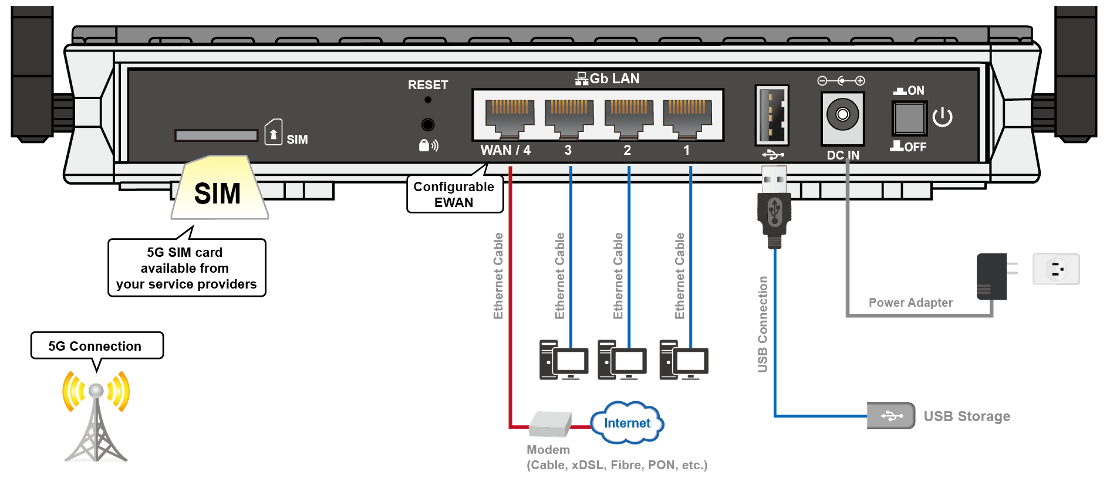

應用圖
規格表
| WAN Interface | |
|---|---|
|
5G NR
|
● |
|
Ethernet WAN
|
● GbE (Software configurable EWAN) |
|
Hardware Interface
|
|
|---|---|
|
SIM slot
|
● |
|
Gigabit Ethernet
|
●
(x4) (Configurable EWAN x1)
|
|
802.11n (2.4 GHz)
|
●
600 Mbps (3x3)
|
|
802.11ac (5 GHz)
|
●
1733 Mbps (4x4)
|
|
USB Host
|
● (USB 2.0) |
|
Features
|
|
|---|---|
|
VPN
|
|
|
IPv4 / IPv6
|
|
|
Dual WAN (Failover/Failback)
|
|
|
Dual WAN (Load Balance)
|
|
|
Dual APNs
|
● (*2)
|
|
Interface Grouping
|
|
|
Hardware Specifications
|
|
|---|---|
|
Physical Specifications
|
Dimensions: 9.04" x 6.10" x 1.69" (229.5 mm x 155 mm x 43mm)
|
|
Power Requirements
|
Input: 15V DC, 2.0A
|
|
Operating Environment
|
perating temperature: 0°C ~ 40 °C
|
|
Humidity
|
20% - 95% non-condensing
|
