堅固耐用工業級規格設計

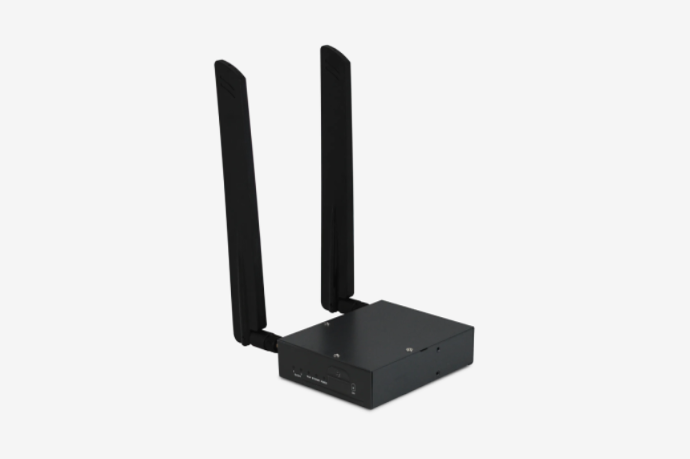

Billion M150是專為嚴苛工業環境所設計的寬頻通訊設備。擁有堅固金屬外殼，可 在攝氏溫度 -20到60度(華氏-4到140度)的環境下運作，可接受的輸入直流 電壓為 9V至56V。輕巧和薄型設計提供高度靈活的安裝選項，適用於各種 環境與應用。以及多項企業級功能，例如：虛擬專用 網(VPN)、防火牆(Firewall)、自動故障轉移(Failover/Failback)、服務質量（QoS）等，提供安全可靠的網路通訊連接。

高可用性和網絡彈性

Billion M150  內建 LTE WAN 口，提供兩個 Gigabit 乙太網路埠和一個 RS-232/ RS-485 串行接口，可提供 LTE 無線數據連接。智能軟件支持 可配置的 Gigabit LAN/WAN 選項以及多項企業級功能，例如：虛擬專用 網(VPN)，防火牆(Firewall)，自動故障轉移(Failover/Failback)等，提供無 與倫比的安全穩固運行力。

彈性的網路連線

• Dual-WAN Interfaces (4G LTE, GbE WAN)


內嵌式 4G/LTE *1

• Embedded high performance 4G/LTE module
• Primary 4G/LTE WAN: FDD and/or TDD


網路通訊協定與功能

• Dual WAN Failover/ Failback
• Dual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack*2
• Dual APN*3
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2, OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/client/relay


防火牆

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN Pass-through

虛擬專用網路 (VPN)

• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN

串行序列埠(RS-232/RS-485)

• DB-9 female
• Modbus/TCP, Telnet Server, SSH Server, UDP Server/ Client, TCP Server/ Client

全球導航衛星系統(GNSS)*4

• GPS system


系統管理

• Password protection for system management
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and download via web-based GUI
• TR-069 (CWMP)*2, SNMP

• 3G/4G LTE Usage Allowance

• Remote System Log monitoring
• Scheduling Auto-Reboot
• Physical layer/protocol diagnostic test tool

硬體規格/實體介面

• WAN: LTE (and/or GbE WAN option)

• Ethernet LAN: 2-port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch

• SIM Card: one(1) slot

• Reset Button
• Power Connector: 2-pin connector

• LED Indicators
• Antenna:
• LTE: one(1) detachable antennas

• GPS*4: one(1) detachable antenna(option)

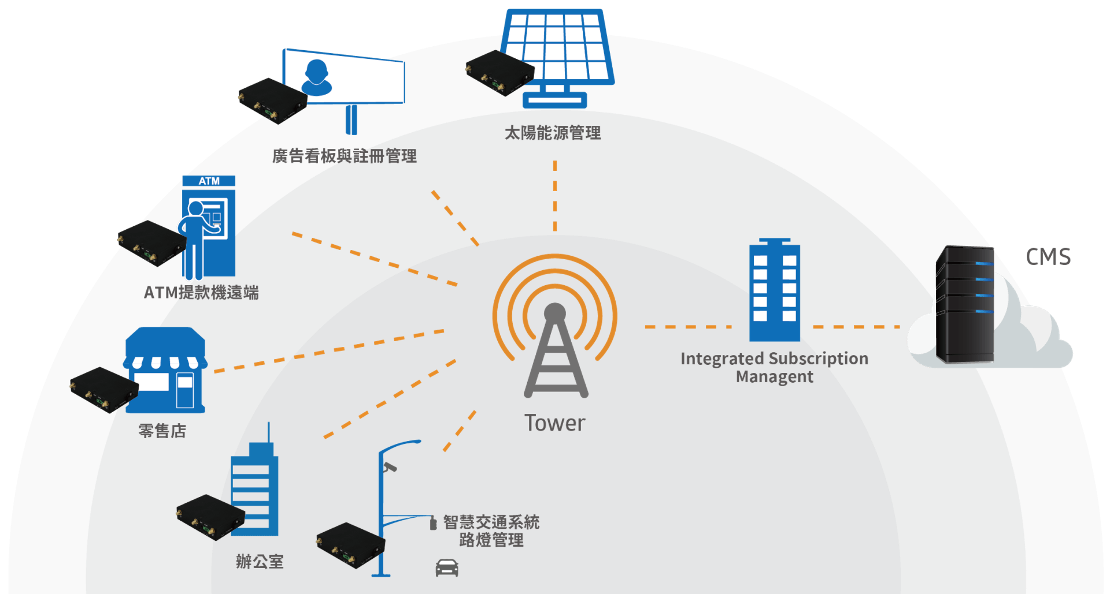

應用圖

規格表

WAN Interface
LTE	●  ​
Ethernet WAN	● GbE

Hardware Interface
SIM slot	● (x1)
Gigabit Ethernet	●  (RJ45 x2)(Configurable EWAN x1)
GPS	● (Optional)
Serial port (RS-232/RS-485)	● (DB9 x1)

Features
VPN	​
IPv4 / IPv6	​
Dual WAN (Failover/Failback)	​
Dual WAN (Load Balance)	​
Dual APNs	​
Dual firmware images	​
Metal casing	​

Hardware Specifications
Physical Specifications	4.29"(W) x 1.17"(H) x 3.43"(D)(109mm x 29.7 mm x 87 mm)
Power Requirements	DC input steady state voltage range: 9V~56VDC
Operating Environment	-20°C ~ 60 °C
Humidity	20% - 95% non-condensing
